Clay Soil’s Effect on Pipes in Caboolture

If you live in Caboolture, Morayfield, Upper Caboolture, or anywhere in the Moreton Bay region and have observed wet patches, areas of sinking land, persistent blockages, or cracks in your foundation, you may be concerned that reactive clay soil is damaging your underground pipes.

The foundation in Caboolture is composed of reactive clay, which expands when wet and contracts when dry, sometimes fluctuating in volume by up to 20% or more. This continuous cycle exerts significant pressure on underground pipes during wet periods, leaving them susceptible to damage as the soil dries out. Older clay sewer and galvanised water pipes are particularly at risk. A camera inspection can help identify any damage early, while pipe relining often presents a practical solution without the need for excavating your garden.

In Caboolture, your underground pipes are constantly contending with the shifting soil.

This ongoing conflict can lead to serious pipe damage over time. By the time visible signs appear, the underlying issues may have been developing for a considerable period.

How Do Clay Soil Cycles Contribute to Pipe Damage?

There are four key phases to consider: wet swelling (compression), dry shrinking (loss of support), the repetitive stress of these cycles, and the typical drought-to-flood transitions experienced in Southeast Queensland. Each cycle worsens existing cracks and misaligns joints.

• The wet phase: Heavy rainfall in Caboolture causes the clay to absorb moisture and expand. This expansion generates crushing pressure on pipes from all angles, potentially forcing joints together or pulling them apart. Rigid pipe materials are particularly susceptible to cracking under such intense pressure.
• The dry phase: After the rain stops and the clay dries, it contracts and pulls away from the pipes. This creates voids and gaps, leading to sagging, bending at joints, and the formation of bellies where water and sediment can accumulate.
• The repetitive cycle: This process of expansion and contraction occurs repeatedly with changing weather conditions—often dozens of times a year in Caboolture's climate. Each cycle increases stress on the pipes and gradually widens existing cracks.
• The drought-flood pattern: Southeast Queensland experiences alternating dry spells followed by heavy wet seasons. After a prolonged dry period, the clay shrinks significantly. When heavy rain returns, the soil expands rapidly, placing pipes—often resting in loose, cracked ground—under sudden and extreme pressure.

Which Pipe Types Are Most at Risk of Damage?

Older clay sewer pipes (from properties built before the 1970s), galvanised steel water mains (from homes constructed before 1985), and concrete stormwater pipes are at the highest risk. Modern PVC pipes generally perform better, but inadequate backfill can still lead to joint separation. Copper pipes, while more flexible, may develop pinhole leaks at connection points due to repeated stress.

• Clay pipes: Clay sewer pipes, particularly those from homes built before the 1970s in Caboolture, are among the first to fail. Their brittle nature and heavy construction, combined with mortar joints, make them particularly prone to cracking.
• Galvanised steel pipes: Utilised for water supply in homes constructed prior to 1985, these pipes are already compromised by internal corrosion and can crack as the clay soil shifts around them.
• Concrete stormwater pipes: While older stormwater systems can manage compression reasonably well, they often crack at joints during ground movement, allowing roots to intrude through these openings.
• PVC pipes: Modern PVC pipes are more resilient to ground movement due to their flexibility. significant ground movement can still result in joint separation. Poor backfill during installation can increase the vulnerability of PVC pipes.
• Copper pipes: Used in newer homes for water supply, copper pipes are more flexible than galvanised steel but can still develop leaks at connection points due to repeated bending stress.

What Are the Warning Signs of Underground Pipe Damage?

Stay alert for wet spots during dry weather, sinkholes or soft areas, slow drainage, unpleasant odours in your garden, unusually lush patches of grass, trees with concentrated root growth in one area, and cracks in your foundation. If you notice two or more of these indicators, arrange for a camera inspection without delay.

• Wet patches in the garden during dry weather—this may indicate water leaking from a damaged pipe and saturating the soil.
• Sinkholes or soft spots—these develop when soil is washed into a broken pipe, creating an underground void.
• Slow drainage or recurring blockages—a cracked, shifted, or belly-shaped pipe can trap debris and roots at the damaged locations.
• Unpleasant smells in your garden—a cracked sewer pipe may leak sewage into the surrounding soil.

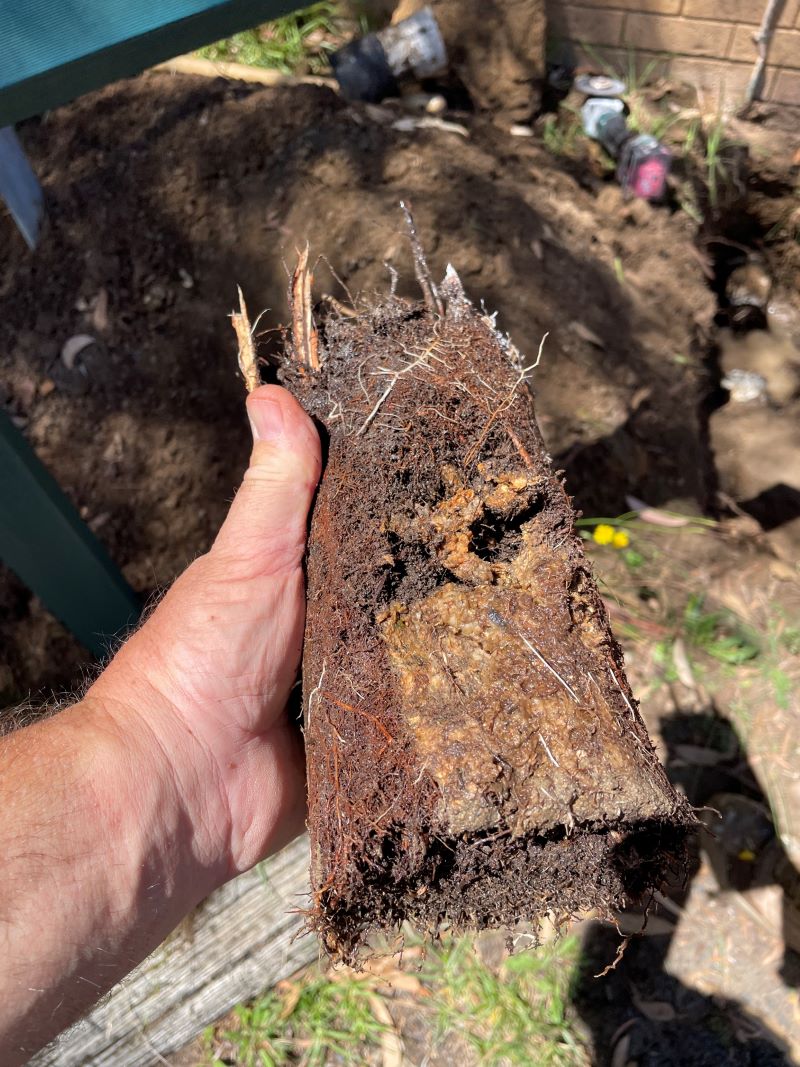

• Tree roots thriving in a specific area—trees often detect moisture and nutrients leaking from damaged pipes, leading to concentrated root growth.
• Cracks in your slab or foundation—movement in the clay soil affecting your pipes can also impact your home's foundations.

How Do We Detect Pipe Damage?

We use CCTV drain cameras to visually inspect the condition of sewer and stormwater pipes in real-time, identifying cracks, root intrusions, displaced joints, bellies, and collapses. For water mains, we utilise acoustic and thermal leak detection methods, along with a thorough property assessment to predict potential future damage.

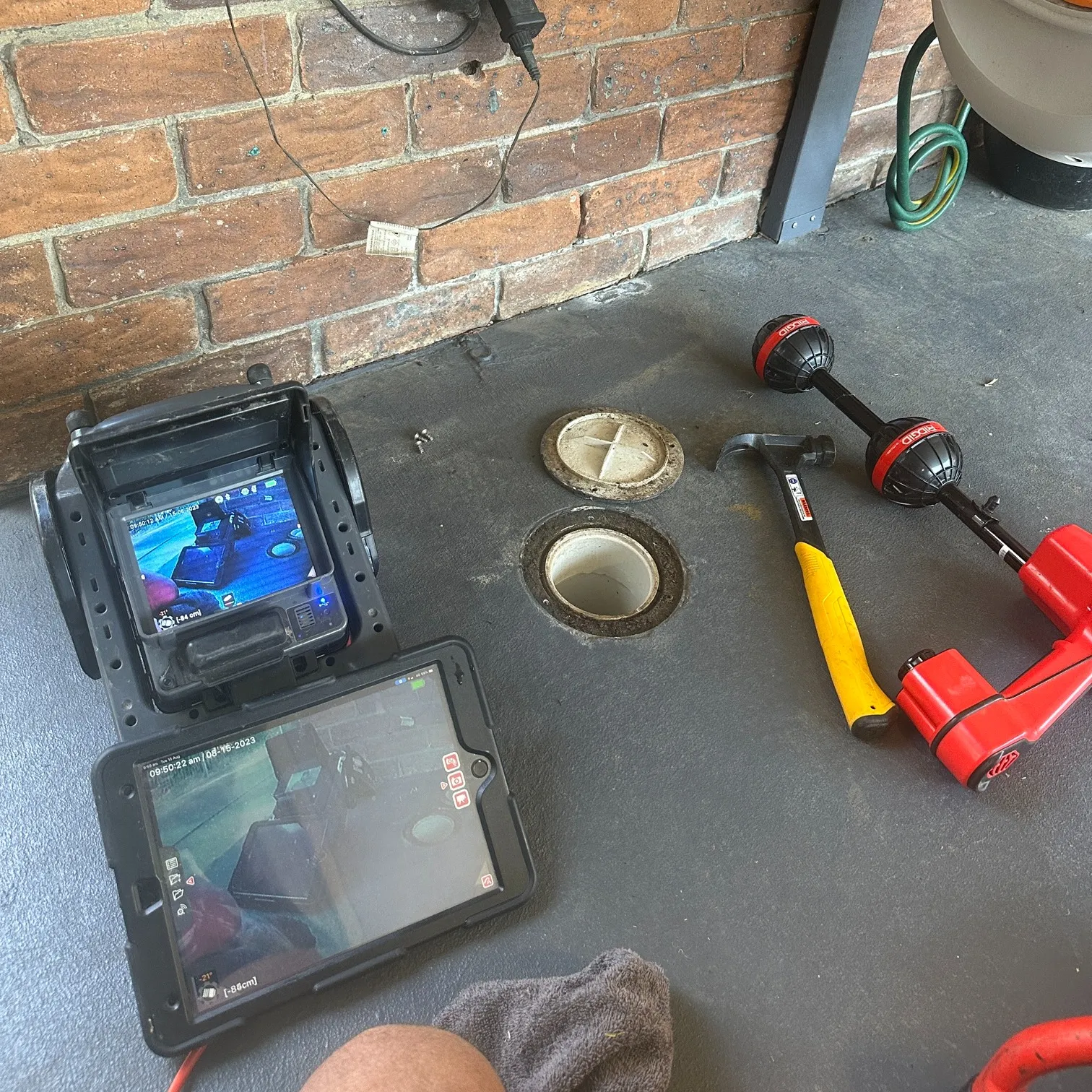

• CCTV drain camera inspection: A camera navigates through the pipe, providing a live visual of its condition. We can uncover cracks, breaks, root intrusions, displaced joints, sediment accumulation, and areas that have collapsed.
• Leak detection: To locate leaks in water supply pipes, we utilise advanced acoustic and thermal detection tools, enabling us to pinpoint issues without the need for excavation.
• Ground assessment: We evaluate the entire landscape—soil conditions, tree placements, pipe materials, and property layout—to understand the causes of damage and anticipate where issues may arise next.

What Are the Best Solutions for Pipe Damage?

Hydro jetting is used to clear immediate blockages. For pipes that are cracked or invaded by roots, pipe relining offers the most effective solution—this process does not require excavation. Installing French and spoon drains can help alleviate future ground movement pressure. Full excavation is only necessary in cases of complete pipe failure.

• Hydro jetting: This technique clears roots, sediment, and debris from damaged pipes to restore proper flow, often serving as a preliminary step before conducting a camera inspection.
• Pipe relining: This solution is ideal for cracked and root-invaded pipes in clay soil. A flexible resin liner is inserted into the damaged pipe and cured in place, eliminating the need for excavation. This solution is designed to last over 50 years.
• French drains: These systems redirect groundwater away from pipe corridors, reducing the pressure caused by the wet-dry cycle.
• Spoon drains: These surface drains capture and redirect rainwater before it saturates the soil around underground pipes.
• Excavation and replacement: This option is reserved for completely collapsed pipes where relining is not feasible. We replace the damaged section with new PVC pipes bedded on sand (rather than clay) to mitigate future issues caused by ground movement.

Why Is Prompt Action Essential to Prevent Pipe Collapse?

Damage to underground pipes in clay soil worsens over time. The situation does not stabilise; it deteriorates. A minor crack today could escalate to complete pipe failure tomorrow. Roots that infiltrate gaps will continue to grow, ultimately obstructing the pipe entirely.

The most cost-effective repairs are those made promptly. A camera inspection reveals the precise conditions underground, allowing you to plan necessary repairs before an urgent situation arises.

You can also verify our QBCC licence on the QBCC public register before scheduling a booking—we are a licensed plumbing contractor in Queensland.

Call 1300 793 962 or contact us to arrange your underground pipe inspection.

Frequently Asked Questions About Clay Soil and Pipe Damage

How Can I Minimise the Risk of Clay Soil Damaging My Pipes?

While you can reduce the risk of damage, complete prevention is not feasible. Consistently watering the area around your home during dry spells can help lessen the shrinkage cycle. Effective tree management can reduce root pressure on pipes. Proper drainage systems also assist in decreasing soil saturation. Regular monitoring of pipes in reactive clay soil is essential—camera inspections can identify issues early.

What Is the Estimated Cost of Repairing Pipes Damaged by Clay Soil?

Repair costs vary based on the extent of the damage and the chosen method. Hydro jetting to clear a blockage starts at around $350. Pipe relining for a damaged section typically begins at $4,000, while full excavation and replacement for a collapsed pipe may exceed $8,000, influenced by factors such as depth, length, and access. We provide accurate pricing after conducting a camera inspection.

Is Pipe Relining as Effective as Installing a New Pipe?

In most cases, yes. A relined pipe has a smooth, jointless interior that provides better flow than the original pipe. The resin liner resists root intrusion and corrosion, boasting a lifespan of over 50 years. The primary advantage of relining over replacement is that it preserves your garden, driveway, and yard.

How Can I Determine If My Property Contains Reactive Clay Soil?

Caboolture, Morayfield, Upper Caboolture, and much of the Moreton Bay area are situated on reactive clay. Signs to look for include deep cracks in the soil during dry spells, sticky clay when wet, and uneven ground levels throughout the seasons. If your home was constructed with special footings (deeper and reinforced), the builder likely recognised the reactive nature of the soil.

Who Should Consider This Article Irrelevant?

• If you are located outside the Moreton Bay region—different soil conditions necessitate different solutions. Our services specifically cover Caboolture, Burpengary, Morayfield, Bribie Island, Narangba, and surrounding suburbs.
• If you plan to undertake DIY plumbing work—underground sanitary plumbing must be conducted by a licensed plumber in Queensland.
• If you seek the cheapest quick fix without an inspection—we prioritise thorough assessments; we won’t commence excavation without first conducting a camera inspection.
