Concrete Floor Thickness for Installing a Car Hoist

Crucial Considerations for Successfully Installing a Car Hoist in Your Garage

When you are thinking about the installation of a car hoist in your garage, it is essential to ensure that your concrete floor meets the necessary specifications for both safety and functionality. A robust and stable foundation is not only critical for the effective operation of the hoist but also vital for securing the safety of your vehicles and personnel using the equipment. By preparing adequately and following the prescribed guidelines, you can significantly improve the hoist’s performance and longevity, making your investment worthwhile.

Most car hoists necessitate a concrete slab with a minimum thickness of 100mm (4 inches). This measurement is crucial as it allows for the even distribution of weight from both the vehicle and the hoist, thereby reducing the likelihood of any potential cracking or settling over time. For more heavy-duty hoists, you should consider increasing the concrete slab thickness to 150mm (6 inches) or more to ensure optimal performance and to enhance safety during operation.

Step-by-Step Guide to Accurately Assessing the Required Concrete Thickness for Your Car Hoist

The thickness of your concrete floor is a vital factor in ensuring the safe installation and operation of a car hoist. Numerous elements must be evaluated when determining the appropriate depth of your slab to ensure it can adequately support the loads it will encounter during use. Understanding these aspects not only helps in preventing costly errors but also significantly enhances the safety of your garage setup, ensuring a smooth and efficient working environment.

Evaluating Load Capacity for the Installation of Your Car Hoist

Car hoists exert considerable stress on the concrete floor beneath them. Therefore, it is crucial to understand the total weight that your concrete floor must bear. This consideration includes not only the weight of the vehicle but also the weight of the hoist itself, which can add a significant load to the floor. Understanding these loads will help you make informed decisions during installation.

A standard passenger vehicle typically weighs between 1,500 to 2,000 kg, while the hoist can contribute an additional 500 to 1,000 kg. Moreover, it is wise to incorporate extra weight as a safety margin, ensuring the structure can accommodate any unforeseen circumstances that may arise during operation. This proactive approach will enhance both safety and stability.

For most residential garages, a concrete thickness of 100 mm to 150 mm is usually sufficient. However, if you plan to lift significantly heavier vehicles, it may be necessary to consider a thicker slab to ensure safety and stability during hoist operation. Consulting with a structural engineer is advisable, as they possess the expertise to provide tailored guidance and assist you in determining the precise thickness needed based on your specific circumstances and requirements.

Exploring Various Types of Car Hoists and Their Concrete Thickness Requirements

It is essential to understand that different types of car hoists come with specific requirements regarding concrete thickness. Two-post lifts and four-post lifts are among the most popular options for homeowners looking to add a car hoist to their garage. Each type has its own unique characteristics that influence the necessary concrete specifications.

Two-post lifts typically exert pressure on concentrated points, necessitating a thicker concrete slab, often around 150 mm or more, to effectively accommodate the concentrated load. This added thickness helps to ensure that the lift operates safely and reliably for years to come.

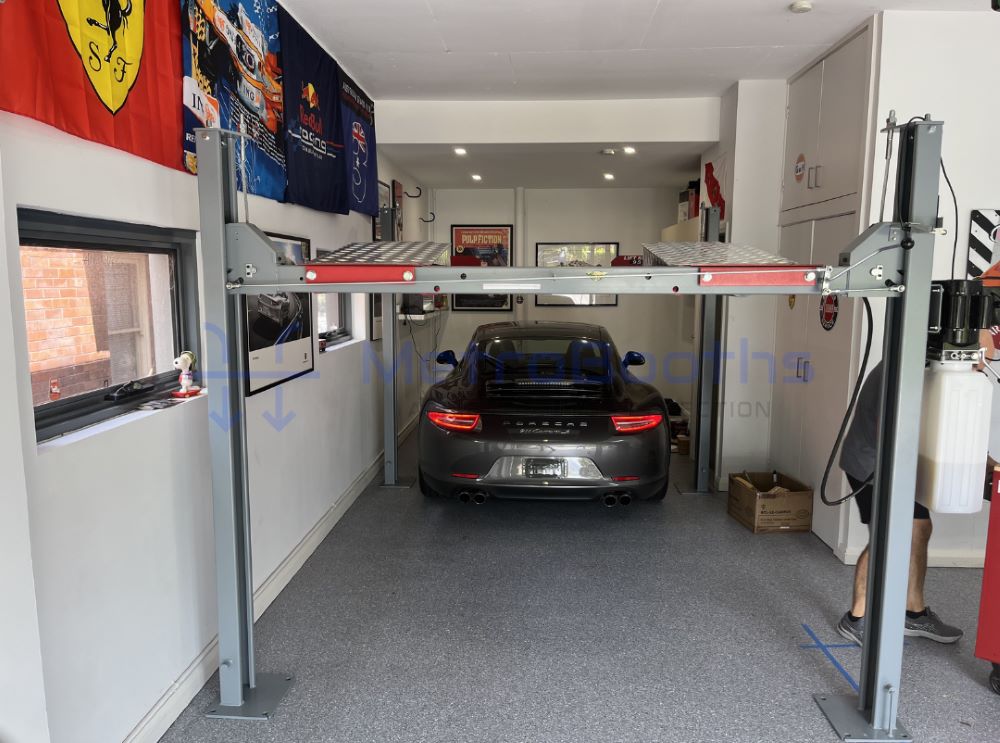

In contrast, four-post lifts tend to distribute weight more evenly across a larger area, allowing them to function effectively with a slightly thinner slab, generally between 100 mm to 125 mm. This understanding is crucial when planning and installing your car hoist as it affects both safety and efficiency.

Always refer to the manufacturer’s specifications for the hoist you are considering, as they will typically outline the minimum concrete thickness required for safe operation. Adhering to these guidelines is essential for achieving optimal performance and ensuring the longevity of your installation. Remember that these recommendations serve as general guidelines, and your specific needs may vary depending on your garage configuration and the types of vehicles you intend to lift.

Recognising the Importance of Concrete Strength and Reinforcement Techniques

The strength of your concrete is as critical as its thickness. Higher strength concrete can often be effectively used at a thinner depth while still providing adequate support for heavy loads. This is especially relevant in the context of a car hoist installation, where the structural integrity of the floor is paramount.

It is advisable to use concrete with a compressive strength of at least 25 MPa for any car hoist installation. Many industry experts recommend opting for concrete with a strength rating of up to 32 MPa for applications that involve heavy-duty use and frequent lifting of vehicles. This choice will significantly enhance the safety and durability of your installation.

Incorporating reinforcement techniques is vital for substantially improving the durability of your concrete. The addition of steel mesh or rebar can greatly enhance the overall strength of your concrete floor, allowing for the possibility of using a thinner slab while still ensuring it can effectively support heavy loads during operation. This can be particularly beneficial for budget-conscious homeowners who want to maximise their investment.

For most home garages, SL82 mesh presents a reliable option, providing sufficient strength for the majority of car hoists without incurring excessive costs. If you have concerns regarding potential cracking, consider integrating fibres into your concrete mix, which can help mitigate the formation and spread of small cracks over time, thereby enhancing the longevity of your installation.

Critical Installation Factors for Ensuring Successful Car Hoist Operation

When you are installing a car hoist, meticulous site preparation and regular maintenance of the floor are of paramount importance. By carefully considering concrete specifications and ensuring proper floor care, you can guarantee the safe and prolonged operation of your hoist, ultimately protecting your investment in both the equipment and your garage.

Essential Site Preparation and Concrete Pouring Techniques for Car Hoist Installation

Prior to the installation of your car hoist, it is crucial to verify that your concrete floor meets all necessary specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Additionally, the slab must be perfectly level and free from any cracks to ensure optimal performance and safety during use. This attention to detail will pay off in the long run.

For new concrete pours, it is essential to use steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Moreover, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability during operation. Avoid placing the hoist over expansion joints or weak areas of the concrete, as this can lead to serious safety hazards.

If you are uncertain about the strength and integrity of your floor, it is highly advisable to consult a professional who can conduct a thorough assessment of its condition. This proactive step can save you time, money, and potential safety issues down the line.

Vital Ongoing Maintenance After Your Car Hoist Installation

Once your car hoist is installed, it is critical to regularly monitor the condition of the concrete surrounding it. Keep an eye out for any cracks, chips, or signs of stress, and address any issues promptly to prevent larger complications that could affect the functionality and safety of your hoist. This diligence is essential for maintaining a safe working environment.

It is also important to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to structural issues. Furthermore, consider using protective mats under the lift arms to minimise wear and tear on the floor, thereby extending its lifespan and maintaining its integrity.

Regularly check the tightness of the anchor bolts, as loose bolts can cause damage to the concrete and render the hoist unsafe for operational use. This simple maintenance step can prevent costly repairs while ensuring safe usage. Additionally, think about applying a sealant to the concrete to protect against stains and moisture. Such measures can significantly extend the lifespan of your concrete floor while enhancing its overall appearance, making it a worthwhile investment.

Common Questions Regarding Car Hoist Installation and Concrete Requirements

Installing a car hoist requires careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some frequently asked questions related to the concrete requirements for various types of lifts, providing clarity for homeowners and professionals alike.

What is the minimum concrete thickness required for installing a two-post lift?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer’s specifications, as certain models may require thicker slabs for safe operation, ensuring peace of mind.

What specifications must a concrete slab meet for a four-post hoist installation?

Typically, a four-post hoist necessitates a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It is wise to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, providing added assurance for your investment.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight, leading to significant safety hazards. If your existing floor does not meet the required thickness, it may be necessary to add a new layer of concrete to achieve the appropriate depth for safe operation, ensuring both functionality and safety.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use, protecting your investment in the long run.

What weight can a 100mm thick concrete floor support during hoist operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilised with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It is advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements, ensuring safety and stability.

What factors should be considered when calculating concrete thickness for heavy lifting equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a prudent choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximise safety and efficiency, helping you avoid potential pitfalls.
